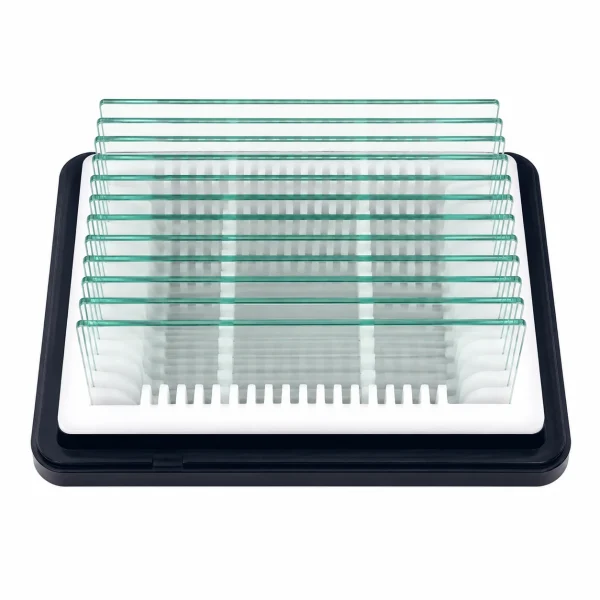

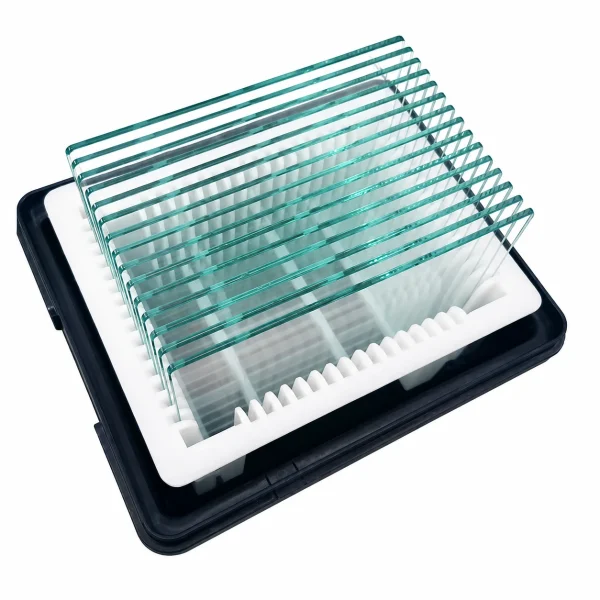

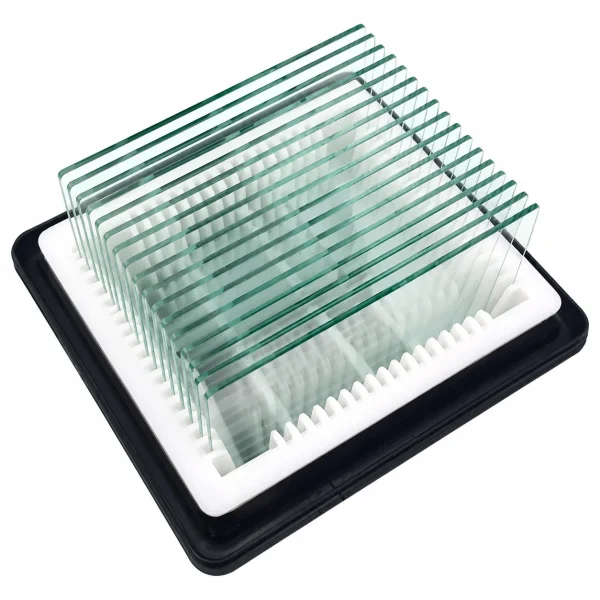

Photomask Blanks – Chrome-Coated Soda-Lime & Quartz Glass
Available Models
| Model | Type | Packaging |
|---|---|---|
| 3006 | Soda-Lime Glass Photoresist-Coated Photomask Blank | 20 pcs / box |
| 4009 | Soda-Lime Glass Photoresist-Coated Photomask Blank | 15 pcs / box |
| 5009 | Soda-Lime Glass Photoresist-Coated Photomask Blank | 15 pcs / box |
| 6009 | Soda-Lime Glass Photoresist-Coated Photomask Blank | 15 pcs / box |
| 6012 | Soda-Lime Glass Photoresist-Coated Photomask Blank | 15 pcs / box |
| 5009 | Quartz Glass Photoresist-Coated Photomask Blank | 15 pcs / box |
| 6025 | Quartz Glass Photoresist-Coated Photomask Blank | 15 pcs / box |
Product Structure
Photoresist-coated chrome photomask blanks consist of a
glass substrate, chromium layer and photoresist layer.
Two photoresist options are available: AZ1500 and TFP650.
Please select the required photoresist in advance.
Manufacturing Process
The photomask blank is a hard-surface photomask material.
A flat, high-quality glass substrate is coated using DC magnetron
sputtering (SP) to form chromium nitride/chromium oxide films,
creating the chrome-coated substrate.
A layer of photoresist or electron-beam resist is then coated
onto the chrome-coated substrate to form the photoresist-coated
photomask blank.
Photomask Blank
The photomask blank is the photosensitive blank used to fabricate
fine photomask patterns. The required photomask is obtained through
photolithographic patterning and etching.
Features
- High photosensitivity
- High resolution
- Low defect density
- Good wear resistance
- Easy cleaning
- Long service life
Applications
- IC photomasks
- LCD photomasks
- PCB photomasks
- PDP photomasks
- DOT photomasks
Packaging
Due to sealed packaging requirements, the minimum order quantity
is one box. The minimum box quantity is 15 pieces.
