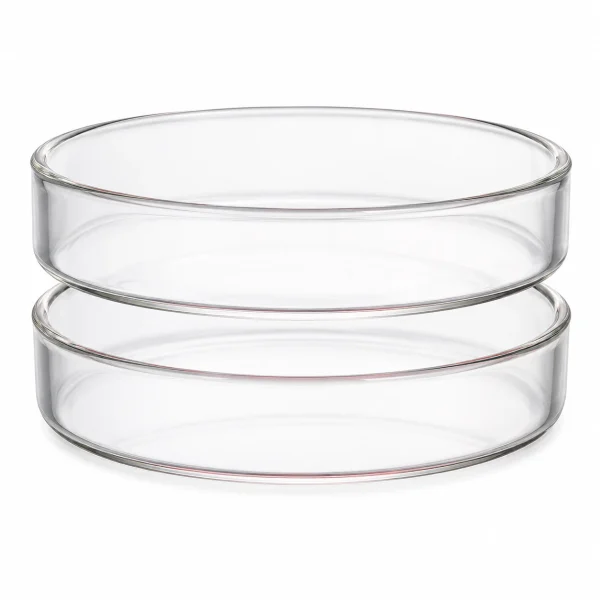

Heat-Resistant Glass Crystallizing Dishes
These glass crystallizing dishes feature a deep, open cylindrical
design for general laboratory use. Six standard sizes are available,
with nominal diameters ranging from 60 mm to 180 mm.
Select the required model according to its outer diameter, inner
diameter, overall height and internal depth.
Product Specifications
| Product Type | Glass crystallizing dish |
| Material | Heat-resistant glass |
| Available Nominal Sizes | 60, 90, 100, 120, 150 and 180 mm |
| Diameter Range | 60–180 mm nominal size |
| Shape | Deep, open cylindrical dish |
Available Sizes
All dimensions below are nominal. Please check the actual outer
diameter and height when selecting a suitable model.
| Nominal Size | Outer Diameter | Inner Diameter | Overall Height | Internal Depth |
|---|---|---|---|---|
| 60 mm | 60 mm | 56 mm | 34 mm | 32 mm |
| 90 mm | 90 mm | 86 mm | 44 mm | 42 mm |
| 100 mm | 100 mm | 96 mm | 54 mm | 52 mm |
| 120 mm | 125 mm | 121 mm | 62 mm | 60 mm |
| 150 mm | 150 mm | 146 mm | 75 mm | 73 mm |
| 180 mm | 180 mm | 176 mm | 87 mm | 85 mm |
Typical Applications
- Laboratory crystallization
- Solution evaporation
- Sample preparation
- Precipitate collection
- General laboratory containment
Size notice:
The 120 mm model designation corresponds to an actual listed
outer diameter of 125 mm. Please select the product according
to the detailed dimensions rather than the nominal model name alone.
