ZI1 ZnSe IR Windows for In-Situ Experiments, Multiple Sizes
Price range: $50.00 through $308.00
ZnSe IR Windows for In-Situ Experiments – Multiple Sizes
Product Description

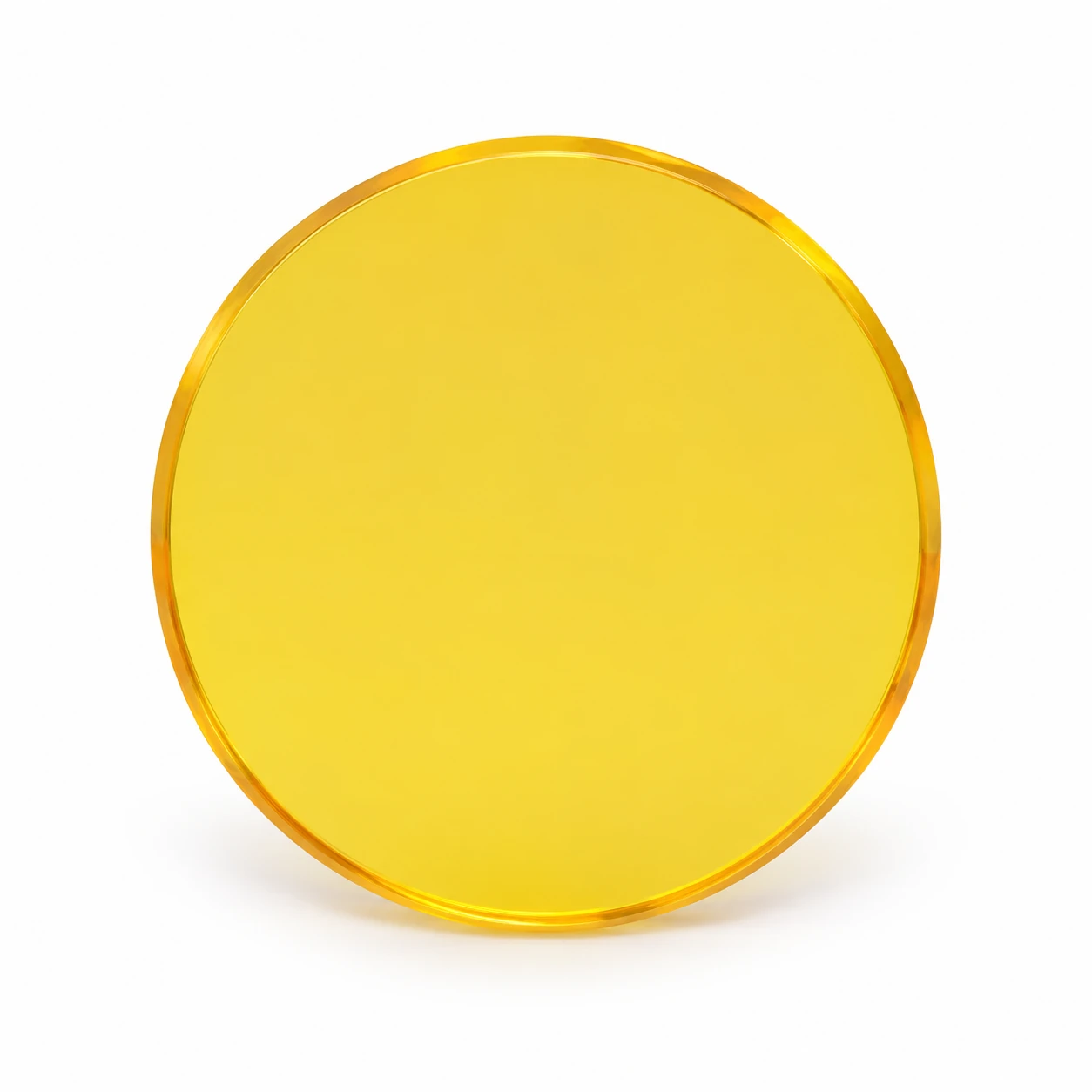

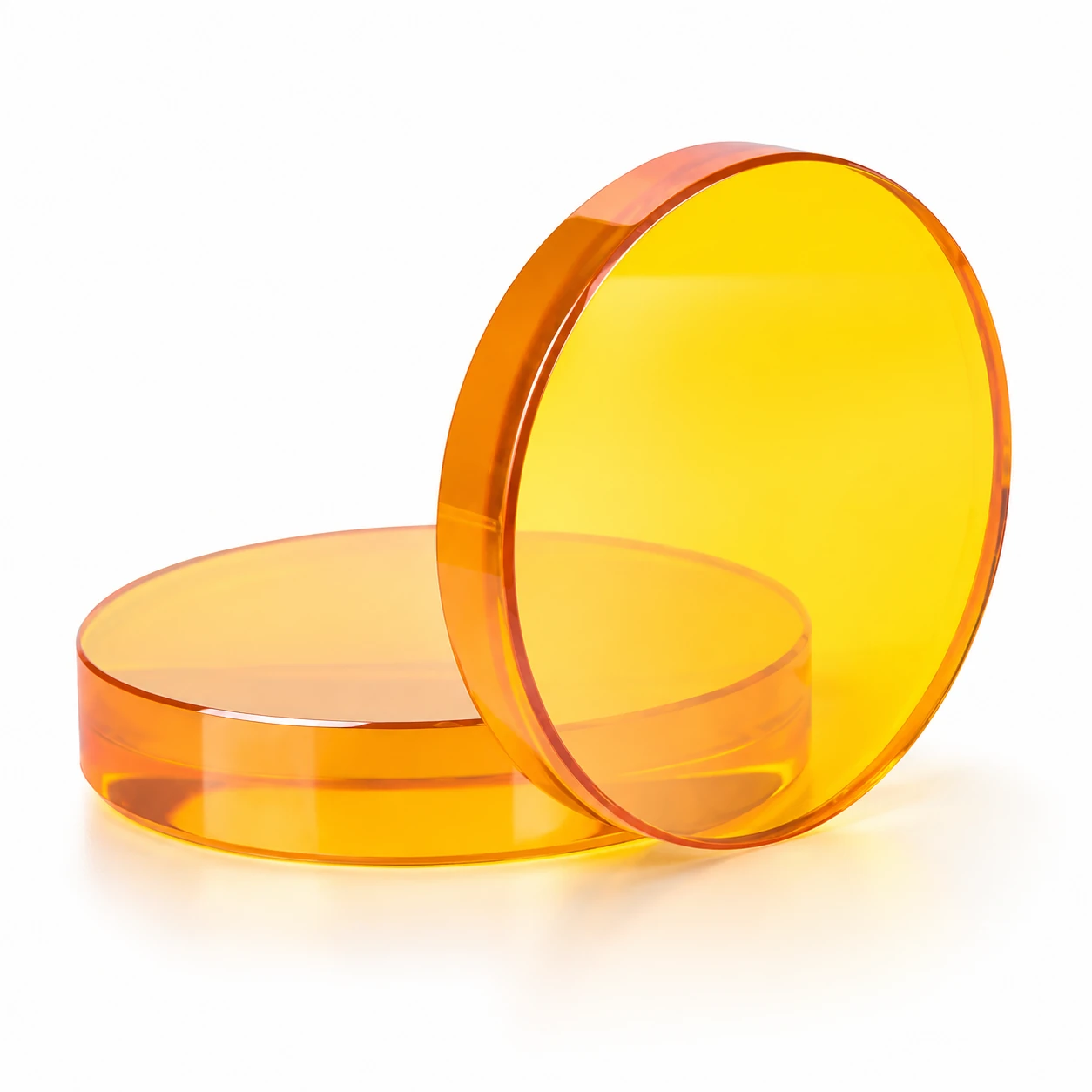

Zinc selenide (ZnSe) is a yellow transparent polycrystalline optical
material with a broad infrared transmission range of approximately
0.5–15 μm. It is widely used for infrared windows, lenses, reflectors
and other optical components.
ZnSe is especially suitable for optical systems operating around
10.6 μm, including CO₂ laser systems. It can be used for total
reflectors, partial reflectors, beam expanders, plano-convex lenses,
meniscus lenses, gold-coated reflectors, circular polarizers and
field lenses.
CVD ZnSe features very low impurity absorption and low scattering
loss. The material is also resistant to deliquescence and is widely
used in laser systems, medical optics, astronomy, infrared imaging
and laboratory in-situ experiments.
Available Sizes
| Diameter | Thickness |
|---|---|
| Φ10 mm | 2 mm |
| Φ13 mm | 2 mm |
| Φ15 mm | 1 mm |
| Φ15 mm | 2 mm |
| Φ22 mm | 1 mm |
| Φ25 mm | 2 mm |
| Φ25 mm | 4 mm |
| Φ32 mm | 3 mm |
Optical & Thermal Properties
| Material | Zinc Selenide (ZnSe) |
| Transmission Range | Approx. 0.5–15 μm |
| Wavenumber Range | Approx. 4000–650 cm⁻¹ |
| Transmission | >68% |
| Bulk Absorption Coefficient @ 10.6 μm | 0.0005 cm⁻¹ |
| Refractive Index Temperature Coefficient @ 10.6 μm | 61 × 10⁻⁶ /°C |
| Refractive Index Inhomogeneity @ 632.8 nm | <6 × 10⁻⁶ |
| Thermal Conductivity | 0.18 W/cm/°C |
| Specific Heat | 0.356 J/g/°C |
| Linear Thermal Expansion Coefficient @ 20°C | 7.57 × 10⁻⁶ /°C |
Material Characteristics
- Yellow transparent polycrystalline ZnSe material
- Typical crystal grain size approximately 70 μm
- Broad infrared transmission range
- Low impurity absorption
- Very low optical scattering loss
- Resistant to deliquescence
- Suitable for 10.6 μm CO₂ laser optical systems
Applications
- In-situ infrared experiments
- Infrared spectroscopy
- CO₂ laser systems
- Infrared optical windows
- Plano-convex and meniscus lenses
- Beam expanders
- Reflective optical components
- Medical optical systems
- Astronomy
- Infrared imaging and night vision
Customization
Other diameters and thicknesses can be customized according to
customer requirements. Please contact us for custom dimensions
and detailed specifications.
| Size | 10X2 MM ZnSe IR Window, 13X2 MM ZnSe IR Window, 15X1 MM ZnSe IR Window, 15X2 MM ZnSe IR Window, 22X1 MM ZnSe IR Window, 25X2 MM ZnSe IR Window, 25X4 MM ZnSe IR Window, 30X2 MM ZnSe IR Window / Flat, 30X2 MM ZnSe IR Window / Perforated, 32X3 MM ZnSe IR Window / Flat, 32X3 MM ZnSe IR Window / Perforated, Custom Size / Specification |
|---|
