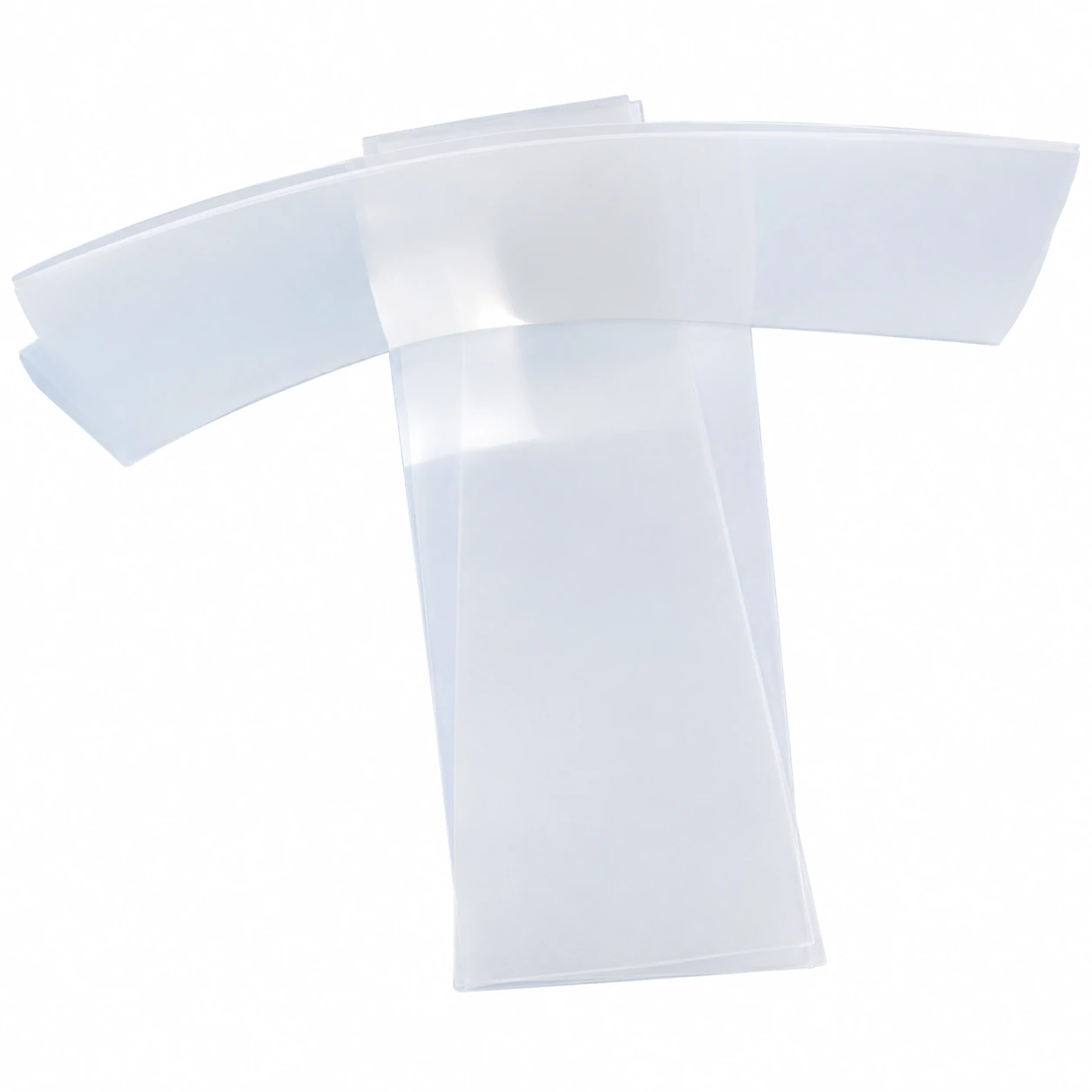

LR1 Low-Resistance Flexible ITO-PET Conductive Film

LR1 Low-Resistance Flexible ITO-PET Conductive Film - Image 2

LR1 Low-Resistance Flexible ITO-PET Conductive Film - Image 3

LR1 Low-Resistance Flexible ITO-PET Conductive Film

Name: LR1 Low-Resistance Flexible ITO-PET Conductive Film
SKU: LR1
Availability: InStock

Price range: $54.00 through $281.00

Size

Clear

SKU: LR1 Category: Substrates & Conductive Materials

Flexible ITO-PET Conductive Film

Flexible ITO-PET conductive film is produced by sputtering an ITO
layer onto a non-conductive PET high-temperature film, forming a
flexible ITO-PET conductive film. It is suitable for laboratory
fabrication of flexible solar cells and other flexible devices.

Product Specifications

Sheet Resistance	ITO Thickness	Transmittance	Wavelength Range
30–40 Ω/cm²	65 nm	83%	400–700 nm
70–80 Ω/cm²	23 nm	86%	400–700 nm
100–150 Ω/cm²	20 nm	88%	400–700 nm
200–300 Ω/cm²	13 nm	88%	400–700 nm

Temperature Range

Flexible ITO-PET conductive film is suitable for experimental
conditions of 80–120°C.

ITO-PET vs ITO-PEN

Item	ITO-PET	ITO-PEN
Type	Flexible Conductive Film	Flexible Conductive Film
Suitable Temperature	80–120°C	150–200°C
Price	—	Higher

Flexible PET Non-Conductive Film

Flexible PET non-conductive film / PET flexible high-temperature
film is suitable for experimental conditions of 80–120°C
and is non-conductive.

Size

300X200X0.05MM / 300-400 OHM / SINGLE PIECE, 300X200X0.05MM / 40 OHM / SINGLE PIECE, 300X200X0.05MM / 6 OHM / SINGLE PIECE, 300X200X0.125MM / 20 OHM / SINGLE PIECE, 300X200X0.125MM / 40 OHM / SINGLE PIECE, 300X200X0.125MM / 6 OHM / SINGLE PIECE, 300X200X0.175MM / 15 OHM / SINGLE PIECE, 300X200X0.175MM / 150 OHM / SINGLE PIECE, 300X200X0.175MM / 40 OHM / SINGLE PIECE, 300X200X0.175MM / 6 OHM / SINGLE PIECE, 300X300X0.125MM / 20 OHM / SINGLE PIECE
