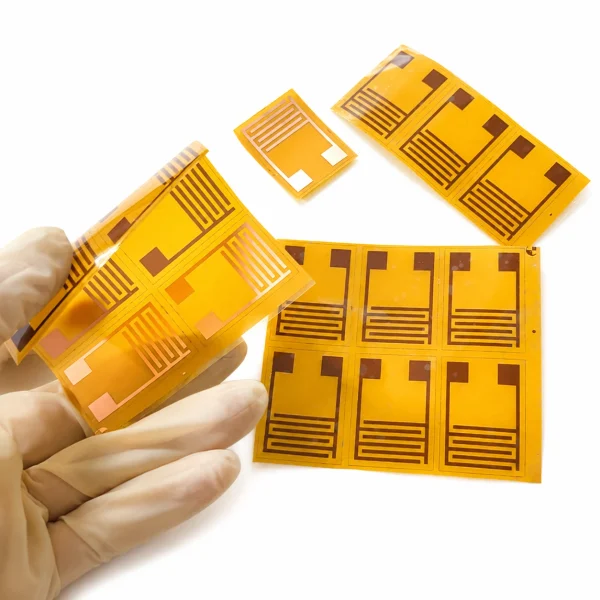

PI/PET Flexible Gold-Plated Interdigitated Electrode (IDE)
This flexible gold-plated interdigitated electrode is available with
either a PI or PET substrate. It features an 18 μm copper
conductive layer with a 25 nm electroplated gold surface. The
typical substrate thickness is approximately 0.05 mm, making the
electrode suitable for flexible electronics and experimental sensor
development.
Product Specifications
| Product Type | Flexible interdigitated electrode (IDE) |
| Substrate Options | PI or PET |
| Typical Substrate Thickness | Approximately 0.05 mm |
| Conductive Base Material | Copper |
| Copper Layer Thickness | 18 μm |
| Electrode Surface | Gold plated |
| Gold Layer Thickness | 25 nm |
| Gold-Plating Process | Electroplating |
| Electrode Pattern | Interdigitated electrode array |
